Ribbon Breakout

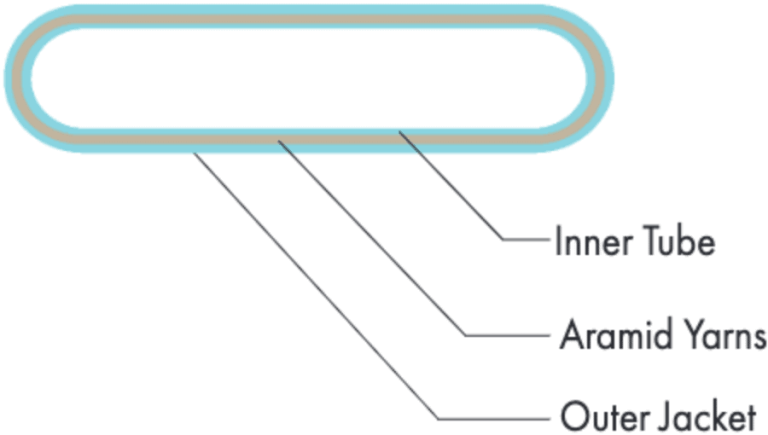

Precision OT offers two types of ribbon breakout tubing. Our ruggedized breakout tubing RB1251XX00 for 12 fiber ribbons of 250μM buffered fibers is available in 12 different colors. This tubing is used for breaking out bare 12 fiber ribbons to color coded tubing for terminating with MTP/MPO 12 fiber connectors. The tubing is constructed with an inner tube for the inserted fibers, a layer of aramid yarn for strain relief and connector crimping, and an overall color coded PVC jacket. A second version R120XX00 for breaking out, protection and management of bare 12 fiber ribbons for fusion and mechanical splicing is also offered. It is a single tube construction with no aramid yarn or outer jacket.
