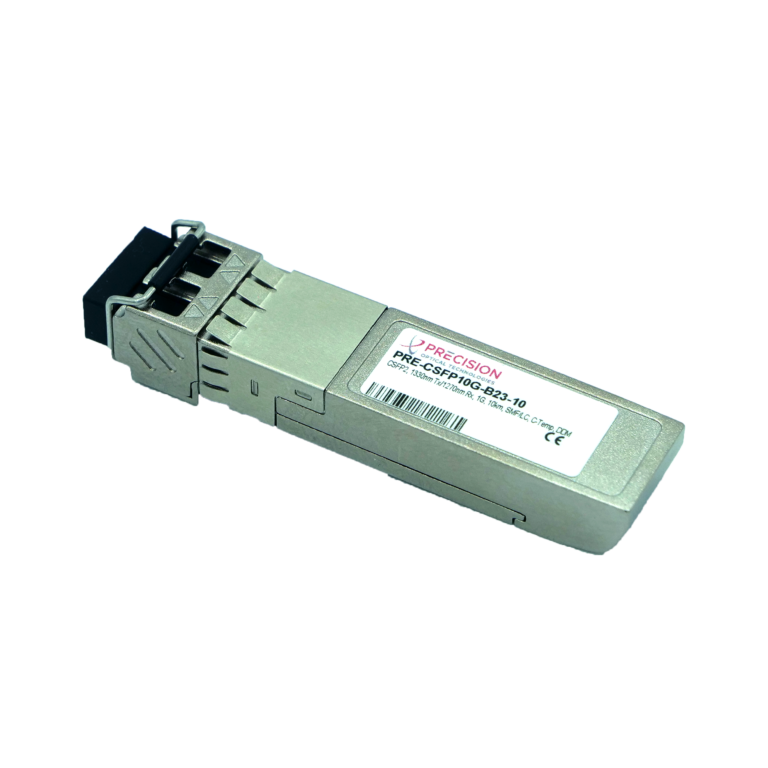

PRE-CSFP10G-B23/32-10(I)
The PRE-CSFP10G-B23/32-10I is a dual BIDI CSFP 10G optical transceiver supporting 10km transmission over single-mode fiber using 1270nm/1330nm wavelengths with LC connectors.
CSFP, Dual BIDI, 1270nm/1330nm, 10G, 10km, SMF/LC
The PRE-CSFP10G-B23/32-10I is a compact dual-channel CSFP optical transceiver designed for high-density 10G networking applications. Utilizing bidirectional (BIDI) technology, it enables simultaneous transmission and reception over a single strand of single-mode fiber (SMF) with wavelengths of 1270nm and 1330nm, supporting distances up to 10km.
This module integrates DFB transmitters for stable optical output and reliable long-reach performance. The duplex LC connector interface ensures simple deployment while maximizing fiber efficiency through dual-channel operation within a compact CSFP form factor.
Equipped with Digital Diagnostic Monitoring (DDM), the PRE-CSFP10G-B23/32-10I provides real-time visibility into key parameters such as temperature, voltage, and optical power, improving network reliability and management. Available in both commercial and industrial temperature ranges, this transceiver is suitable for a wide range of deployment environments.
Fully compliant with industry safety and environmental standards, including RoHS, IEC, and FDA laser safety requirements, the PRE-CSFP10G-B23/32-10I ensures dependable and standards-based 10G optical connectivity.
- CSFP Dual-Channel Form Factor: Enables two independent 10G channels in a compact footprint for high-density deployments.
- BIDI Transmission (1270nm/1330nm): Supports bidirectional communication over a single fiber strand.
- DFB Transmitter: Provides stable, high-performance optical transmission for long-reach applications.
- 10km Reach over SMF: Optimized for extended-distance transmission on single-mode fiber.
- Duplex LC Connector: Ensures reliable and flexible fiber connectivity.
- Digital Diagnostic Monitoring (DDM): Offers real-time monitoring of module performance and health.
- C-Temp & I-Temp Options: Supports deployment in both standard and harsh operating environments.
• 10G Ethernet
• 10GBASE-LR/LW
• 10G Fiber Channel
The PRE-CSFP10G-B23/32-10I is a compact dual-channel CSFP optical transceiver designed for high-density 10G networking applications. Utilizing bidirectional (BIDI) technology, it enables simultaneous transmission and reception over a single strand of single-mode fiber (SMF) with wavelengths of 1270nm and 1330nm, supporting distances up to 10km.
This module integrates DFB transmitters for stable optical output and reliable long-reach performance. The duplex LC connector interface ensures simple deployment while maximizing fiber efficiency through dual-channel operation within a compact CSFP form factor.
Equipped with Digital Diagnostic Monitoring (DDM), the PRE-CSFP10G-B23/32-10I provides real-time visibility into key parameters such as temperature, voltage, and optical power, improving network reliability and management. Available in both commercial and industrial temperature ranges, this transceiver is suitable for a wide range of deployment environments.
Fully compliant with industry safety and environmental standards, including RoHS, IEC, and FDA laser safety requirements, the PRE-CSFP10G-B23/32-10I ensures dependable and standards-based 10G optical connectivity.
