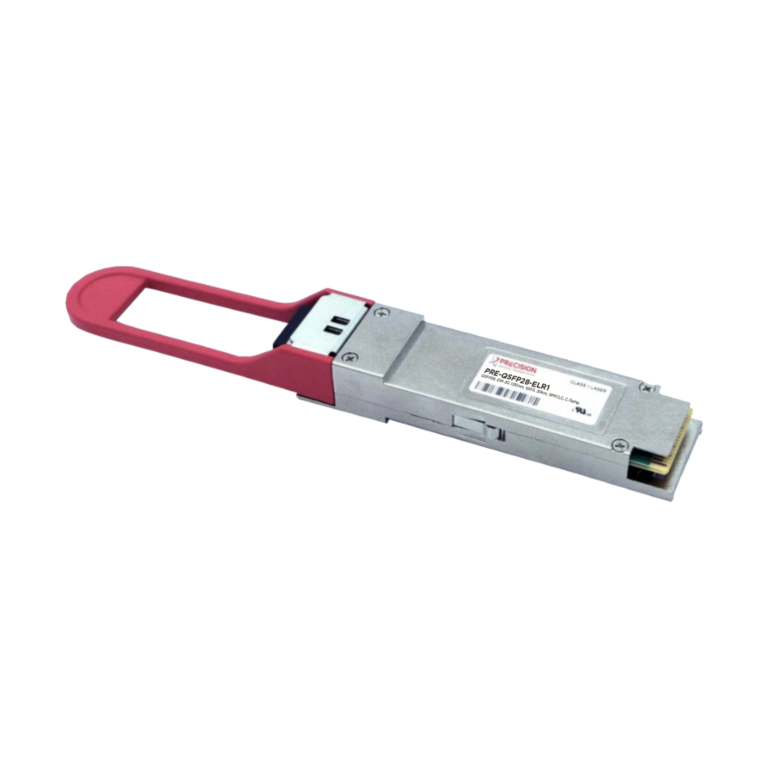

PRE-QSFP28-ER1-30
The PRE-QSFP28-ER1-30 is designed for data center, switch and router connections, supporting 100GBASE-ER Ethernet with single-wavelength PAM4 technology.
QSFP28, ER1-30, 1310nm, 100G, 30km, SMF/LC, C-Temp
Description
Key Features
Applications
Documents
Description
This QSFP28 optical transceiver supports 100GBASE-ER Ethernet applications over 1310nm single-mode fiber with an LC/UPC connector, delivering up to 30km reach in commercial temperature environments.
Designed for data center, switch and router connections, supporting 100GBASE-ER Ethernet with single-wavelength PAM4 technology. It complies with the 100G-ER1-30 Single Lambda MSA, SFF-8636 and RoHS standards, incorporates digital diagnostic monitoring, and consumes less than 4.5W for efficient operation in high-speed networks.
Designed for data center, switch and router connections, supporting 100GBASE-ER Ethernet with single-wavelength PAM4 technology. It complies with the 100G-ER1-30 Single Lambda MSA, SFF-8636 and RoHS standards, incorporates digital diagnostic monitoring, and consumes less than 4.5W for efficient operation in high-speed networks.
Key Features
- Single Wavelength PAM4
- EML Transmitters
- APD Receivers
- Up to 30km on SMF
- LC/UPC Connector
- Digital Diagnostic Monitoring (DDM)
- Operating case temperature: 0°C~70°C
- <4.5W Power Consumption
Applications
- 100GBASE-ER Ethernet
- Data Center Applications
- Switch & Router Connections
