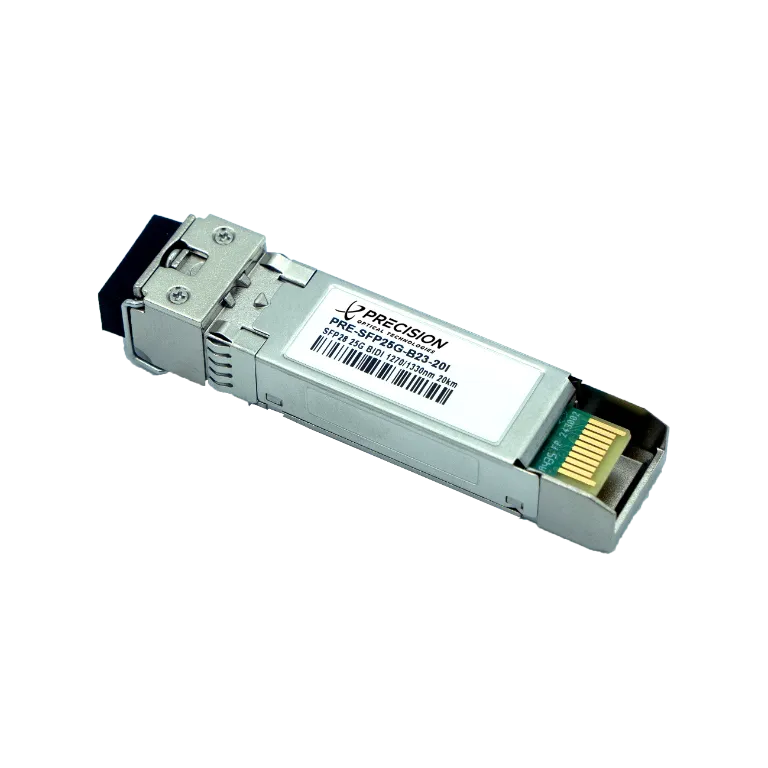

PRE-SFP25G-B23(32)-20(I)
The SFP25G-B23(32)-20(I) optical transceiver supports 25G Ethernet over single-mode fiber with a reach of up to 20 kilometers using BIDI technology with 1270/1330nm wavelengths.
SFP28, LR, BIDI, 1270/1330nm (1330/1270nm), 25G, 20km, SMF/LC, C-Temp (I-Temp), DDM
Description
Key Features
Applications
Documents
Description
The SFP25G-B23(32)-20(I) optical transceiver module supports 25G Ethernet transmission over distances of up to 20 kilometers using bidirectional (BIDI) technology. This module operates on dual wavelengths, 1270nm and 1330nm, enabling efficient data transmission and reception over a single fiber, optimizing fiber usage for long-distance applications.
Available in both commercial temperature (C-temp) and industrial temperature (I-temp) variants, it is ideal for data centers, enterprise networks, and telecom environments. The built-in digital diagnostics monitoring (DDM) provides real-time performance tracking, allowing for proactive network management. Its hot-swappable design ensures quick and easy integration or replacement without service interruption.
Available in both commercial temperature (C-temp) and industrial temperature (I-temp) variants, it is ideal for data centers, enterprise networks, and telecom environments. The built-in digital diagnostics monitoring (DDM) provides real-time performance tracking, allowing for proactive network management. Its hot-swappable design ensures quick and easy integration or replacement without service interruption.
Key Features
- BIDI Technology: Supports bidirectional data transmission over a single fiber using 1270nm and 1330nm wavelengths.Â
- Extended-Distance Transmission: Supports up to 20 kilometers over single-mode fiber (SMF).Â
- Temperature Variants: Available in C-temp and I-temp versions for diverse operating environments.Â
- Hot-Swappable Design: Enables easy installation or replacement without network downtime.Â
- Built-in DDM: Provides real-time monitoring for efficient network management.Â
Applications
- Data CentersÂ
- Enterprise NetworksÂ
- Telecom NetworksÂ
Documents
