The Ultimate Guide to Managed Wi-Fi: Reliability, Coverage, and Performance

The average American checks their phone 205 times a day. That’s basically once every five minutes while they are awake.

So, what does this tell us? Aside from the fact that maybe we should all find some healthy hobbies, such statistics help us realize that the demand for seamless, high-performance internet virtually everywhere we go is no longer seen as a luxury. Now, it’s a baseline expectation – one that presents both a powerful opportunity as well as a significant challenge for today’s network operators and service providers.

To truly rise to the occasion, it’s not enough to offer basic connectivity. What’s needed is a leap forward into thoughtfully engineered, managed Wi-Fi solutions. But this requires a shift in focus from individual components to end-to-end network design that can deliver reliable, seamless coverage, indoors and outdoors.

Why Unmanaged Wi-Fi Fails in High-Density Environments

Here are two terms to consider: unmanaged Wi-Fi and managed Wi-Fi. An unmanaged Wi-Fi environment consists of multiple, separate networks where each user sets up their own service and Wi-Fi access points (WAPs).

Take your typical high-density environment – multi-dwelling units (MDUs), office complexes, and college campuses. In these environments, unmanaged Wi-Fi simply can’t keep up with the data demand. Overlapping access points can create signal interference, which leads to sluggish speeds, dead zones and potential security vulnerabilities. As end users move through this type of environment, unmanaged Wi-Fi’s limitations can translate into dropped connections that can disrupt everything from video calls to critical business operations. To avoid this, users must manually switch between different access points as they move throughout a location. This is not the quality of service that modern customers expect.

What Makes Up a Managed Wi-Fi Network?

A managed Wi-Fi network is a centrally controlled solution designed, installed and operated by an internet or managed service provider (ISP or MSP) to deliver seamless, reliable connectivity to end users. It was engineered to overcome unmanaged Wi-Fi’s limitations, and the architecture begins with a high-speed fiber backbone.

Indoor Deployments: The network starts with a high-speed active primary data feed, an Ethernet drop, that delivers the ISP’s fiber connection to the building. After that, the drop connects to the network’s central hub within the building, known as the Main Distribution Frame (MDF).  From there, data flows through category cables to individual units. In larger structures, Intermediate Distribution Frames (IDFs) are strategically placed to extend the network’s reach without signal degradation.

Outdoor Deployments: In spaces like RV parks and marinas, the engineering challenges intensify. Skimping on the passive components that protect the active equipment is a common, yet costly, mistake. Inadequate enclosures leave networks vulnerable to overheating or damage from water and ice. This leads to expensive truck rolls and even customer downtime. Successful deployments begin by protecting the heart of an outdoor managed Wi-Fi network – the base mesh node.

• Protecting the Network’s Beginning: The base mesh node is where the main internet line connects to an Ethernet switch before being broadcast out to the rest of the park. Protecting this critical link requires a high-quality, purpose-built solution like the PPC outdoor managed Wi-Fi enclosure. It offers a durable, NEMA 3R-rated aluminum design, climate control filtered louvers, and an exhaust fan to ensure active equipment stays protected against the elements. As well, its field-ready layout with DIN rails and pre-wired connections simplifies installation, enhancing time to network deployment.

• Extending Reliability to the Edge: From the base node, the signal travels wirelessly to remote wireless access point (WAP) mesh nodes that further extend coverage. Each remote node uses a Power over Ethernet (PoE) injector for power, and these injectors require protection. The PPC Wi-Fi PoE Terminal, a durable polycarbonate housing, serves as the optimal solution. Also NEMA 3R rated, it features climate control and includes a pre-wired outlet and bracket for two standard PoE injectors to reduce installation time.

Investing in high-quality protection for both your base and remote nodes is a direct investment in uptime and lowered operational and maintenance costs.

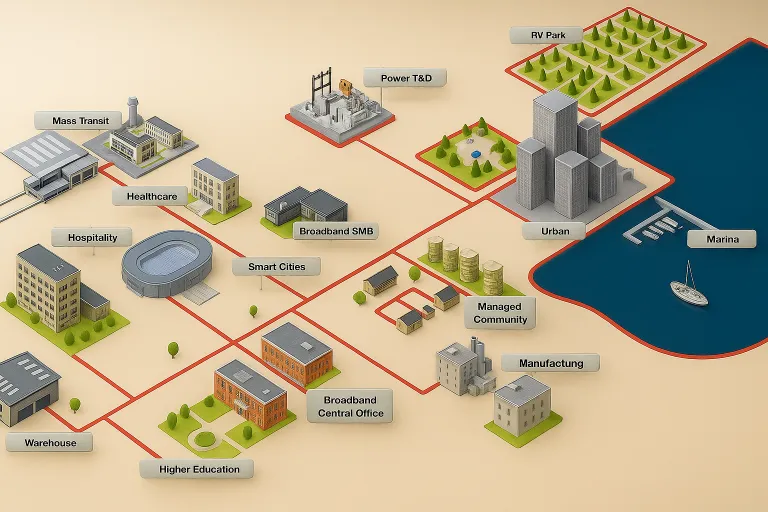

From manufacturing facilities and warehouses requiring automation support to marinas needing mission-critical navigation data, each deployment has unique demands. A successful managed Wi-Fi offering is a fully engineered system, tailored to the specific physical, technical, and operational needs of the environment.

How Belden Supports End-to-End Managed Wi-Fi Solutions

For network operators, building managed Wi-Fi systems indoors and outdoors has traditionally meant sourcing components from multiple vendors, creating procurement and systems integration headaches. This is where the strength of the entire Belden broadband portfolio comes in.

As part of Belden, its broadband connected brands PPC and Precision OT are the gateways to an ecosystem in which you can find every component needed for a world-class managed Wi-Fi deployment. This means you now have access to a complete, end-to-end solution from one source:

• High-quality, interoperable, resilient optical transceivers and a wide variety of passive components from Precision OT to bring your networks to life, including wireless backhaul.
• A full range of fiber and category cables, enclosures, connectors, and mounting hardware from PPC, including equipment solutions required for demanding outdoor builds.
• Ethernet over Coax solutions that enable you to upgrade “brownfield” buildings with existing coaxial cable, minimizing disruption and cost of ownership.

By integrating these kinds of comprehensive offerings, we empower you to design and deploy scalable, secure, and highly reliable managed Wi-Fi networks with confidence. Expand your service offerings into new and lucrative markets, backed by the engineering expertise and quality that define the Belden team of connected brands.

Design Your Managed Wi-Fi Deployment with Belden

---
