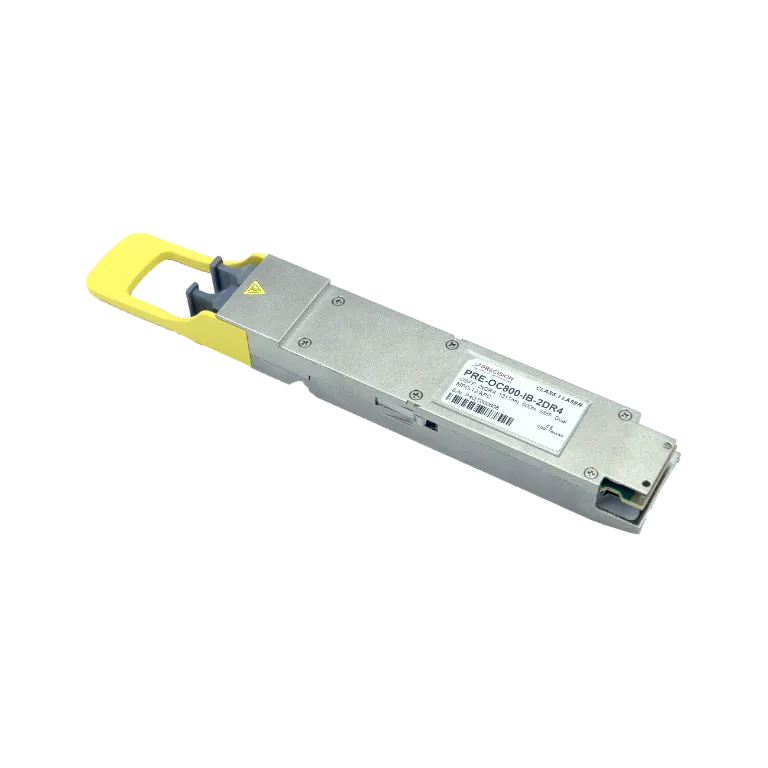

PRE-OC800-IB-2DR4

PRE-OC800-IB-2DR4 es un transceptor óptico de parte superior cerrada OSFP800 compatible con aplicaciones InfiniBand 2x400G-DR4 y Ethernet 800G sobre fibra monomodo de 1310 nm con conectores MPO12-APC duales, que ofrecen un alcance de hasta 500 m en entornos de temperatura comercial.

---

El PRE-OC800-IB-2DR4 está diseñado para aplicaciones de centros de datos de alto rendimiento, compatible con 1 interfaz InfiniBand/Ethernet de 800G o 2 de 400G y 8 interfaces Ethernet de 100G. Cumple con los estándares OSFP MSA, IEEE 802.3ck y 802.3bs, incorpora gestión CMIS y cumple con los requisitos ambientales RoHS para un funcionamiento fiable y energéticamente eficiente en redes modernas de alta velocidad.

• OSFP Form Factor – Utilizes the high-density OSFP form factor to support next-generation 800G data center and networking applications.
• Up to 500m on Single Mode Fiber – Provides reliable optical transmission over distances up to 500 meters using standard single-mode fiber.
• Láser de clase 1 – Incorporates a Class 1 laser device ensuring safe operation and compliance with international laser safety standards.
• EML Transmitter – Employs an Electro-absorption Modulated Laser (EML) for high-speed, low-noise optical signal generation and superior performance.
• Receptor PIN – Features a PIN photodiode receiver for efficient signal detection and low power consumption.
• Dual MPO-12/APC Optical Connector – Uses dual MPO-12/APC connectors for easy, low-loss connections in high-density optical environments.
• Operating Case Temperature: 0°C~70°C – Designed for commercial temperature operation, ensuring stable performance in typical data center conditions.
• Monitoreo de diagnóstico digital (DDM) – Provides real-time monitoring of key module parameters such as temperature, optical power, and voltage for enhanced network reliability and maintenance.

• Data Center Applications – Optimized for high-performance data center environments requiring ultra-high bandwidth and low latency for AI, HPC, and cloud networking.
• 1x800G InfiniBand/Ethernet – Supports a single 800G InfiniBand or Ethernet interface for maximum throughput and flexible deployment in modern data center architectures.
• 2x400G InfiniBand/Ethernet – Enables dual 400G InfiniBand or Ethernet connections, offering scalability and efficient bandwidth utilization across multiple links.
• 8x100G Ethernet – Provides eight independent 100G Ethernet lanes, ideal for breakout configurations and flexible network designs.
• RoHS – Fully compliant with RoHS environmental standards, ensuring the product is free from hazardous materials and environmentally safe.
• CMIS – Implements the Common Management Interface Specification for reliable module management, control, and interoperability across vendors.
• OSFP MSA – Conforms to the OSFP Multi-Source Agreement, ensuring mechanical and electrical compatibility with a wide range of OSFP-based platforms.
• IEEE 802.3ck and 802.3bs – Compliant with IEEE standards defining 100G, 400G, and 800G Ethernet physical layer specifications for high-speed optical data transmission.
