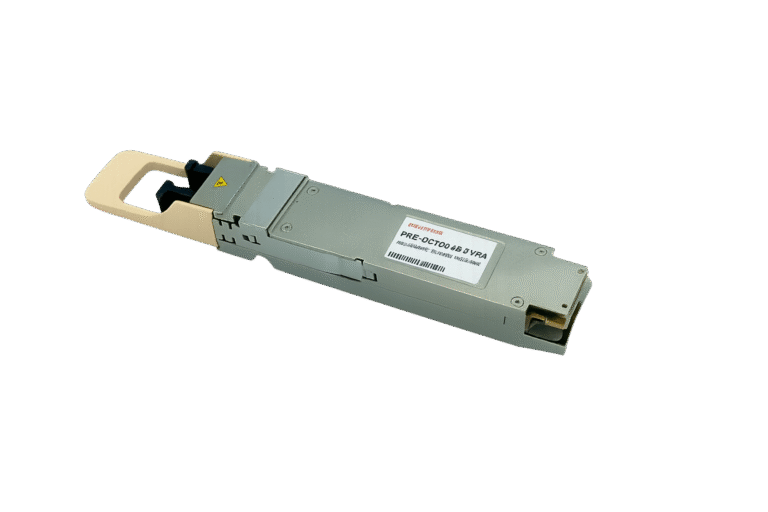

PRE-OC800-IB-2VR4
Das PRE-OC800-IB-2VR4 ist ein optisches OSFP800-Modul, das 2×400G-VR4- oder 1×800G-Konnektivität über 50 m MMF mit zwei MPO-12/APC-Schnittstellen bietet und für Hochleistungs-Rechenzentren und InfiniBand-Umgebungen entwickelt wurde.
OSFP800 Closed-Top, 2x400G-VR4, 850nm, 800GE/InfiniBand, 50m, MMF/Dual MPO12-APC, C-Temp
Der PRE-OC800-IB-2VR4 ist für leistungsstarke Rechenzentrumsumgebungen konzipiert und unterstützt flexible Breakout-Konfigurationen, darunter 1×800G Ethernet, 2×400G Ethernet oder InfiniBand, 4×200G Ethernet oder InfiniBand und 8×100G Ethernet. Er entspricht den Standards OSFP MSA, CMIS und IEEE 802.3/802.3ck und gewährleistet einen vollständig RoHS-konformen Betrieb für skalierbare Infrastrukturen der nächsten Generation.
• OSFP Type 2 Form Factor — High-density, thermally optimized pluggable design for 800G data center and HPC applications
• Up to 50m on Multi Mode Fiber — Reliable short-reach connectivity ideal for rack-to-rack deployments
• Laser der Klasse 1 — Safe optical emission compliant with global laser safety standards
• VCSEL Transmitter — Efficient 850nm VCSEL light source optimized for MMF transmission
• PIN-Empfänger — High-sensitivity photodiode for accurate, low-noise optical signal detection
• Dualer optischer MPO-12/APC-Anschluss — Low-loss, high-density fiber interface supporting dual MPO-12/APC routing
• Commercial Operating Temperature (0°C–70°C) — Stable performance across standard data center temperature ranges
• Digitale diagnostische Überwachung — Real-time module health and optical performance insights
- • Rechenzentrumsanwendungen — Designed for high-performance environments requiring scalable, low-latency, and bandwidth-dense optical interconnects.
• 1x800G Ethernet — Supports full-rate 800G Ethernet links for next-generation fabric and spine deployments.
• 2x400G Ethernet or InfiniBand — Provides flexible breakout options for two independent 400G Ethernet or InfiniBand connections.
• 4x200G Ethernet or InfiniBand — Enables mid-range port decomposition for networks leveraging 200G lanes in HPC and data center clusters.
• 8x100G Ethernet — Offers high-fan-out support with eight separate 100G channels for maximum deployment versatility.
• RoHS — Complies with global environmental and material safety regulations.
• CMIS — Supports the Common Management Interface Specification for unified module monitoring and control.
• OSFP MSA — Built to the OSFP Multi-Source Agreement, ensuring interoperability and standardized mechanical, electrical, and thermal performance.
• IEEE 802.3 and 802.3ck — Adheres to industry Ethernet standards, including 100G-per-lane electrical signaling defined by IEEE 802.3ck.
